Combination of types
The construction styles shown are of the basic types of fibreboard cases.
If the ultimate construction is a combination of two or three basic models.
e.g. flap arrangements, they may also be described as follows:

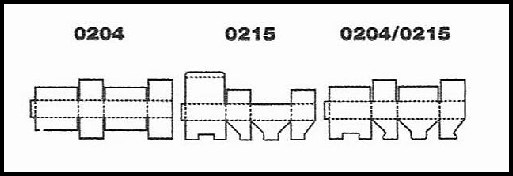

Top flaps as 0204, Bottom flaps as 0215
This type may also be described as 0204/0215 (Top flaps. Bottom flaps).
The construction styles shown are of the basic types of fibreboard cases.
If the ultimate construction is a combination of two or three basic models.
e.g. flap arrangements, they may also be described as follows:
Top flaps as 0204, Bottom flaps as 0215
This type may also be described as 0204/0215 (Top flaps. Bottom flaps).
Styles and the manufacturers joint
The drawing style layouts as shown in this Code may need to be re-arranged depending
on the Manufacturers Joint chosen. Some styles may have a Manufacturers Joint
which maybe glued, stitched or taped.
A glued or stitched Joint may be an extension of either the short or the long panel.

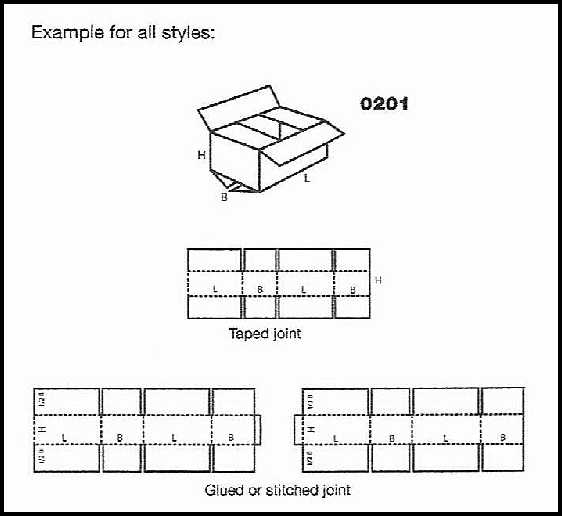

The sketches show how these would be indicated on a drawing:
The drawing style layouts as shown in this Code may need to be re-
which maybe glued, stitched or taped.
A glued or stitched Joint may be an extension of either the short or the long panel.
The sketches show how these would be indicated on a drawing:
